Products

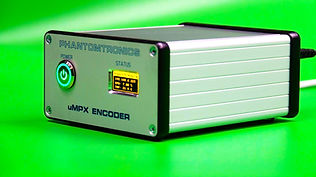

MicroMPX Encoder

Encoder available in one size only:

Standard version:   120x103x 53mm (dxwxh)

Main Features:

• Low Bandwidth MPX from 320kb/s (Optional MicroMPX+ from 176kb/s)

• MPX input BNC, input level adjustable via webinterface

• Build-in Web interface for configuration, monitoring and updating

• Build-in SNMP server for remote monitoring

• Build-in SSH server for remote maintenance

• Security: Webinterface login; IP-Whitelist; MPX-Stream password protection

• Multi-norm Power Supply Adapter included


• Optional: Dual network adapter for automatic seamless stream switching in case of network failure

• Optional: GPS Receiver for SFN applications

MicroMPX Decoder

Decoder available in 2 sizes:

Standard version:   120x103x 53mm (dxwxh)
Small version:            120x78x43mm (dxwxh)


Main Features:

• Low Bandwidth MPX from 320kb/s (Optional MicroMPX+ from 176kb/s)

• Decoder: Build-in MPX backup player in case of MicroMPX steam failure

• Decoder: MPX output BNC output level adjustable via webinterface

• Build-in Web interface for configuration, monitoring and updating

• Build-in SNMP server for remote monitoring

• Build-in SSH server for remote maintenance

• Security: Webinterface login; IP-Whitelist; MPX-Stream password protection

• Multi-norm Power Supply Adapter included

​

• Optional: Dual network adapter for automatic seamless stream switching in case of network failure

• Optional: GPS Receiver for SFN applications

Decoder Small version: 120x78x43mm (dxwxh)

MicroMPX Decoder / Encoder 19Inch

Main Features:

• All of the features of the basic MicroMPX Encoder / Decoder PLUS:

• Build-in Medical grade Power Supply Unit

• Build-in Uniteruptable Power Supply Unit (approx 8 Hr)

19 inch version size: 150x483x43.6 mm (dxwxh)
